FLOATING DOCK – 6.500 t lifting capacity –

Commercial ships,

We can develop for sale of the following Floating Dock – 6.500 lifting capacity

Ref. No. : FD-6500-77 (TBN),

FLOATING DOCK

BUILT: 1977, JAPAN

LOA: 129.4 M

L: 120.0 M

BREADTH (OUTSIDE): 31.0 M

BREADTH (INSIDE): 23 M

DRAFT: MAX 9.0 M, WORKING CONDITION 2.5 M

MIN CLEAR WIDTH BETWEEN ENTRY FENDERS: 22 M

DEPTH (TOP DECK): 11 M

DEPTH (PONTOON): 3.2 M

GENERATER: YANMAR 6RAL-T, 300 PS X 1,200 RPM (AC450V, 60HZ, 250KVA) X 1 SET

LIFTING CAPACITY: TOTAL 6,500 T

MIN CLEAR WIDTH BETWEEN ENTRY FENDERS : 22 M

MAX. SINKING DEPTH: 5.2 M

CRANE: CRANE 10 T X 2 SETS

MAIN BALLAST PUMP: 1500 CBM/H X 2 SETS

TANK CAPACITY: WB 15,185 CBM

LOCATION: KOREA

DELIVERY: WITHIN 1 MONTH AFTER SIGNING CONTRACT

PRICE: INVITE BEST OFFER, AS BROKERS, CAN GUIDE IT UPON GETTING FIRM INTEREST.

= All details are given in good faith but w.o.g =

bri

Floating Dock (lift 5.000 t)-never be used

Commercial ships,

Floating Dock (lift 5,000T)  for sale

Ref: FS-23081801

Technical Specifications
Type of Ship
Floating Dock
L.O.A 142.10 m
Breadth 38.00 m
Depth 10.70m
Laden Draft 2.60 m
Gross Tonnage 12,529
Net weight 6,268
Classification and Notation ZC China
Maximum lift 5,000T
Ballast Pump 350CS-16,75KW,1440 m³/h
Generators CS7H230CD,154KW,

SB-HW4(.D)-120,120KW
Deck Crane 20T/40M*4 sets
Shipbuilding Yard/Year China/2021.12
Payment Terms
Price 6,000,000USD
Delivery as where is at China
Payment Terms T/T
Remarks
Never be used

details against named buyer!

alex

CAISSON / FLOATING DOCK-2006 Korea

Commercial ships, , , ,

We can develop for sale of the following Caisson / Floating Dock

Ref. No. : CD-13200-06 (TBN),

CAISSON / FLOATING DOCK

CLASS: NIL

BUILT: FEB., 2006, KOREA

GRT: 12,602 T

LBP/B(OUT)/B(INNER)/D: 72.00 / 48.64 / 38.64 / 28.10 M

DECK: 5.10 M

HEIGHT: 23.80 M

DWT/DRAFT: 13,200 T / 4.80 M

MAIN GENERATOR: 1,000 KVA X 1,800 RPM X 2 SETS

AUX. GENERATOR: 400 KVA X 1,800 RPM X 2 SETS

EMERGENCY GENERATOR: 55KVA X 1800RPM X 2 SETS

BALLAST: 23,500 CBM

BALLAST DISCHARGE: 3 HRS.

DECK POWER: 26.0T/M3

CRANE: 30 T X 9 M X 1 SET (HYDRO), 9 T X 42 M X 1 SET (HYDRO)

WINDLASS: 25/12.5 T X 10 M/MIN X 4 SETS (HYDRO)

MOORING WINCH: 7.5 T X 10 M/MIN X 4 SETS (HYDRO)

STOCKLESS ANCHOR: 8000KG X 4 SETS

STOCK ANCHOR: 5500KG X 4 SETS

BALLAST PUMP: 2,000 CBM/H X 6 M X 4 SETS

ELEVATOR: 300KG X 20M/MIN X 2 SETS

BALLAST LEVEL SYSTEM: 1 SET

OTHER TANK CAPACITY: WB 24,337 CBM

CREW COMPLEMENT: 8 P

LOCATION: KOREA

DELIVERY: WITHIN 1 MONTH AFTER SIGNING CONTRACT

PRICE: INVITE BEST OFFER, AS BROKERS, CAN GUIDE IT UPON REQUEST.

= All details are given in good faith but w.o.g =

bri

Floating Dock-Lifting capacity:     24,500t (for vessel with LDT max 22,000mt)

Commercial ships, , ,

FOR SALE following newly-built Floating-Dock – Lifting capacity:     24,500t (for vessel with LDT max 22,000mt)

Lifting capacity:     24,500t (for vessel with LDT max 22,000mt)

Class:                  RINA （under construction)

Type of floating dock:        Caisson type

LOA:                                  236.0M

Length of Pontoon:           220.0m

Width between outside walls:       44.5m

Width between inside walls:         37.5m

Width between fender:                 ~37.0m

Length of side wall:                       220.0m

width of sidewall:                          3.5m

Distance from Top deck to baseline:       19.0m

Distance from Safety deck to baseline:  14.4m

Max. immersion draft:    15.0m

Water depth above kell blocks at max imersion draft:   8.9m

Height of keel blocks:           1.3m

Main DE-ballast pump:        2,300m3/h x 8 sets;  1,600m3/H x 2sets;

                                            950m3/H x 2sets.

Lifting time @ 22,000t weight:  abt 120min

Traveling Crane:        20t x 23m x 2sets

Ballast water tank:     32 pcs

Main Generators:      3 x 660kw D/G with 10Kv shore power

Emergency D/G:        1 x 75kw

Location for delivery/inspection:   South China

Expected delivery: By the end of 2023, subject to buyer’s prompt action.

This one is TOWABLE

Location:  South China where inspectable against Buyers LOI and official request

With Best Regards,
CAPTAIN  S  T  LIM

CAISSON / FLOATING DOCK CLASS-2006 Korea

Commercial ships, , , ,

CAISSON / FLOATING DOCK FOR SALE

CLASS: NIL

CD-13200-06

BUILT: FEB., 2006, JINHAE HEAVY IND., CO., LTD, KOREA

GRT: 12,602 T

LBP/B(OUT)/B(INNER)/D: 72.00 / 48.64 / 38.64 / 28.10 M

HEIGHT FROM BASE LINE TO PONTOON DECK: 5.10 M

HEIGHT FROM BASE LINE TO SAFETY DECK: 24.3 M

HEIGHT FROM BASE LINE TO UPPER DECK: 28.0 M

SINKING DEPTH: 23.80 M (MAX 26.5 M)

DWT/DRAFT: 13,200 T / 4.80 M

MAIN GENERATOR: 1,000 KVA X 1,800 RPM X 2 SETS

AUX. GENERATOR: 400 KVA X 1,800 RPM X 2 SETS

EMERGENCY GENERATOR: 55KVA X 1800RPM X 2 SETS

BALLAST: 23,500 CBM

BALLAST DISCHARGE: 3 HRS.

DECK POWER: 26.0T/M3
CRANE: 30 T X 9 M X 1 SET (HYDRO), 9 T X 42 M X 1 SET (HYDRO)

WINDLASS: 25/12.5 T X 10 M/MIN X 4 SETS (HYDRO)

MOORING WINCH: 7.5 T X 10 M/MIN X 4 SETS (HYDRO)

STOCKLESS ANCHOR: 8000KG X 4 SETS

STOCK ANCHOR: 5500KG X 4 SETS
BALLAST PUMP: 2,000 CBM/H X 6 M X 4 SETS

ELEVATOR: 300KG X 20M/MIN X 2 SETS

BALLAST LEVEL SYSTEM: 1 SET

CREW COMPLEMENT: 8 P

LOCATION: KOREA

DELIVERY: WITHIN 1 MONTH AFTER SIGNING CONTRACT
PRICE: INVITE BEST OFFER, AS BROKERS, TRY TO TEST AROUND USD10MILL LELVEL.

= All details are given in good faith but w.o.g =

bri

Floating Dock 6300 Lifting Capacity Blt 2008

Commercial ships, , ,

Floating Dock 6300 Lifting Capacity Blt 2008 for Sale

Kindly note that we can develop following

Floating Dock for sale. This Dock is in cold

laid up condition since the year of 2018,

need necessary maintenance before towing:

Floating dock name：     HC 01
Class：    ZC, original class CCS domestic

for port use in sea water
Date of Delivery:    Nov, 2008
Flag:                  China
Last dry docking time:   May, 2017
next dry docking:     May, 2022 up to extension to Aug, 2022
Length of Pontoon:   120.00m
Length of Side wall:         120.00m
Inner width of side wall:   27.00m
Width of side wall:           34.00m
Height of Pontoon (side):   7.10m
Height of Pontoon (mid):   7.30m
Depth of dock:             17.30m
Height of Safety deck:   13.80m
Max draft at 6300mt lifting Capacity:  4.00m
Max Immersion depth:      15.30m
Max draft for repairing ship:     5.85m
Numbers of Ballast tanks:      24
Lifting Capacity:           6,300mt

Price guidance:  USD5.2million basis

delivery in China as is where she is.

Ngiamlim

Floating Dock-newbuild-never used-5,000 tlc

Commercial ships, , ,

NEWBUILD 5,000TLC FLOATING DOCK EX CHINA FOR SALE

(NEVER USED)

OFFICIAL QUOTATION AS ATTACHED

IT IS FOR STRAIGHT SALE ONLY

PROMPT DELIVERY EX CHINA BY ARRANGEMENT

+++++

Type of Ship Floating Dock
L.O.A 142.00m
End Platform Length Head 8.00m Tail 8.00m
Floating Body Length 126.00m
Wing Wall Length 107.40m
Breadth Outside 34.80m
Breadth Inside 30.00m
Breadth of Wing Wall 2.40m
Dock Body High 3.70m
Operating Draft 3.10m
Maximum Submerged Draft 9.00m
Design Weight Lifting (TLC) 5,000mt, MAX. 6,000mt
Generator SC7H230CD/154KW*1,SB-HW4/120KW*1
Classification ZC China (None IACS)
Shipbuilding Year / Shipyard Dec. 2021 / China
Price 6980,000USD / As is where is @ China
Payment terms T/T

============================

CAPTAIN S T  LIM

5,300TLC FLOATING DOCK-1970/FULLY REBUILT 2012

Commercial ships, , ,

FOR  SALE 5,300TLC FLOATING DOCK

CHINA BUILT 1970 FULLY REBUILT 2012

Z C   CLASS

Ref: FS-22091601
Type of Ship Floating Dock
L.O.A 143.3m
Breadth Outside 32.70m
Breadth Inside 24.00m
Operating Draft 3.00m
Maximum Submerged Draft 9.70m
GRT/NRT 12518/3755
Design Weight Lifting (TLC) 5,300mt, MAX. 5,300mt
Classification ZC China (None IACS)
Shipbuilding Year / Shipyard Oct. 1970 / China
Price 3500,000USD / As is where is @ China
Payment terms T/T

USD 3,500,000 AS IS WHERE IS SOUTH CHINA

NEGOTIATBLE UPON OUTRIGHT OFFER FROM SERIOUS NAMED INTERESTS

CAPTAIN S T  LIM

5500TLC floating dry dock -original built in 2010, rebuilt in 2016 , extend the breadth

Commercial ships, , ,

5500TLC floating dry dock for sale

Below 5500 TLC Floating dock price is PRICE at USD 4.5million.

Please add some commissions for you and us before quoting. There are

No cranes. If buyer required Owners can assist to install cranes but Buyer

Will have to pay for the crane,

5500TLC floating dry dock for sale

Original built in 2010, rebuilt in 2016 , extend the Breadth.

CCS class

LOA: 134.3M

Breadth:32.6m

Innder breadtg:25.5m

Depth:2.4m

Draft:2.3m

Height of Dock wall: 9m

Designed Immerse: 7m

Height of Keel blcok: 0.9m

Designed lifting capacity: 5500T

PRICE: USD4.5Million. China Tks.

DELIVERY : Prompt(around 30days needed), subject to availability.

Ngiamlim

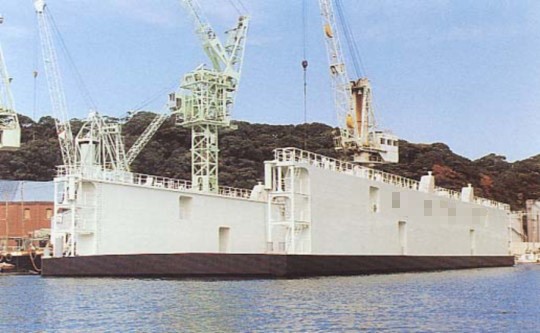

FLOATING DOCK-LIFTING CAPACITY: 2,000 T-1994 Japan

Commercial ships, ,

We can develop for sale of the following Floating Dock

Ref. No. : FD-2000-94 (TBN),

FLOATING DOCK

FLAG: JAPAN

BUILT: OCT. 1994, JAPAN

L / B(OUTER) / B(INNER) / D(MAIN DECK) / D(UPPER): 80.0 / 21.0 / 17.0 / 2.0 / 8.4 M

GRT: 1,600 T

DRAFT: SERVICE 1.65 / MAX 7.40 M

OVERALL HEIGHT: 8.40 M

BOTTOM CULVERT THICKNESS: 2.20 M

LIFTING CAPACITY: 2,000 T

DRAINAGE PUMP CAPACITY: 1,000 T/H X 2 UNITS

VALVE CONTROL: CENTRALIZED CONTROL

SYSTEM STOP PROCEDURE: SPUD TYPE

CRANE: TOWER CRANE 9.25 TON

INSTALLATION LOCATION 6M FROM THE WATER DEPTH LOW TIDE SURFACE

LOCATION: JAPAN

DELIVERY: JULY-AUGUST 2023, JAPAN (NOT POSSIBLE FOR EARLIER DELIVERY)

PRICE: INVITE BEST OFFER, AS BROKERS, CAN GUIDE IT TO NAMED BUYERS.

= All details are given in good faith but w.o.g =

LOCATION: KYUSHU, JAPAN

DELIVERY: JULY-AUGUST 2023

PRICE: INVITE BEST OFFER, AS BROKERS, TRY TO TEST AT JPY140MILL LEVEL.



= All details are given in good faith but w.o.g =
