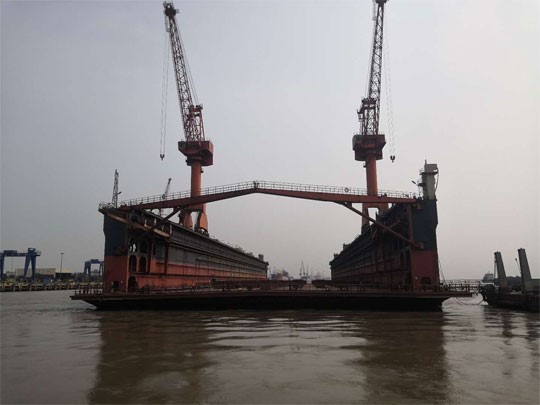

FLOATING DOCK-35.500 TLC-2010

Commercial ships,

FOR  SALE FLOATING DOCK
==============

Ship’s type: 35,500TLC floating dock
Constructed year: 2010
Class: CCS
LOA: 285m
LOA(Floating Bodies): 265m
Breadth: 61/60m
Breadth between walls: 51.0m
Breadth inner wall (net): 48.5m
Width of dock wall: 5.0/4.5m
Height between wall ceiling to CL: 21.0m
Height between safe deck to CL: 16.90m
Draft: 4.8m
Maximum immerse: 17.0m
Number of ballast tanks: 24nos
Number of pump rooms: 4nos
Number of ballast pumps: 12nos
Main power supply: shore connection 10kV/380V
Emergency power supply: one Genset
=================================
ADA WOG

Location: East China

FD capable of serving vessels such as
5,500TEU C/V ( 277.7m*40m*24.3m)
109,600T B/C (250m*4.3m*21.3m)

==========================

LIFTING CAPACITY: 35,500 T
CRANE: 30 TON X 2 SETS, 40 METERS

PRICE :  USD 33,5 MILLION “AS IS / WHERE IS ” BASIS (NON-NEGOTIABLE)
(CHINESE SELLERS  WERE  ASKING  USD 36,5 MILLION  5/6  MONTHS  AGO)

LIM

FLOATING DRY DOCK-2010

Commercial ships,

We can secure following 5,500TLC floating dock for sale

FLOATING DRY DOCK

FLAG: CHINA

CLASS: CCS

BUILT: 2010, REBUILT IN 2016, EXTEND THE BREADTH

LOA/B/D: 134.3 / 32.6 / 2.4 M

GRT/NRT: 3575 / 1072

DRAFT: 2.3 M

INNDER BREADTH: 25.5 M

HEIGHT OF DOCK WALL: 9 M

DESIGNED IMMERSE: 7 M

HEIGHT OF KEEL BLCOK: 0.9 M

DESIGNED LIFTING CAPACITY: 5,500 T

LOCATION: HAINAN, CHINA

DELIVERY: WITHIN 1 MONTH AFTER SIGNING CONTRACT

///ALL DETS WOG///

Hold fully details, can guide you closely.

With Best  Regards

Ngiamlim

Floating Dock 35500 (TBN)-2010 China

Commercial ships,

We can develop for sale of the below Floating Dock

Ref. No. : FD-35500-10 (TBN),

FLOATING DOCK

FLAG: CHINA

CLASS: CCS

BUILT: 2010, CHINA

LOA: 285M

LBP (FLOATING BODIES): 265M

BREADTH: 61/60M

BREADTH BETWEEN WALLS: 51.0M

BREADTH INNER WALL (NET): 48.5M

WIDTH OF DOCK WALL: 5.0/4.5M

HEIGHT BETWEEN WALL CEILING TO CL: 21.0M

HEIGHT BETWEEN SAFE DECK TO CL: 16.90M

DRAFT: 4.8M

MAXIMUM IMMERSE: 17.0M

MAIN POWER SUPPLY: SHORE CONNECTION 10 KV / 380 V

EMERGENCY POWER SUPPLY: ONE GEN. SET

LIFTING CAPACITY: 35,500 T

CRANE: 30 TON X 2 SETS, 40 METERS

BALLAST TANK: 24 TANKS

PUMP ROOM: 4 ROOMS

BALLAST PUMP: 12 UNITS

** LOADABLE CAPACITY: 109,600 DWT BULK CARRIER OR 5500 TEU CONTAINER SHIP

LOCATION: CHINA

DELIVERY: WITHIN 1~2 MONTHS AFTER SIGNING CONTRACT

PRICE: INVITE BEST OFFER, AS BROKERS, CAN GUIDE IT CLOSELY UPON REQUEST.

== All details are given in faith, but w.o.g. ==

brilim

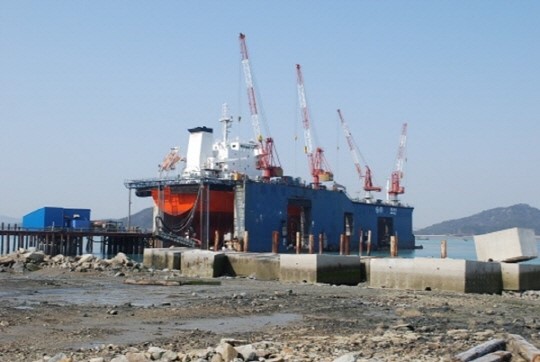

FLOATING DOCK/LIFTING CAPACITY 9,000 TLC – 1986 Japan

Commercial ships,

FOR SALE FLOATING DOCK (PONTOON TYPE)-LIFTING CAPACITY TONNAGE: 9,000 TLC

CLASS: NIL

BUILT: 1986 & 1987 (TWO DOCKS WERE ASSEMBLED TO ONE ON 2008)

DWT: 13,000 T

LIFTING CAPACITY TONNAGE: 9,000 TLC

LOA: 123 M (OVERALL), 105 M (DESIGN)

BREADTH: 34 M (OUTER), 27 M (INNER)

DEPTH: 21.3M, 17.4M (INNER)

DRAFT: FULL DRAFT 15.0M, LIGHT DRAFT: 0.9M

DWT: 13,000T

DISPLACEMENT: 13,000T

HEIGHT OF B/TANK: 3.9M

CRANE: 12 TON X 35M X 2 SETS, 10 TON X 30 M X 2 SETS

MAIN GENERATOR: 150KVA X 2 SET

AUX. GENERATOR: 125KVA X 2 SET

PUMPS: 1,600M2/HR X 45KW X 2 SETS, 900M2/HR X 37KW X 2 SETS,

            95M2/HR X 11KW X 2 SETS, 30M2/HR X 7.5KW X 1 SET

WINCH: 15TON X 10M/MIN X 4 SETS, 7.5TON X 12M/MIN X 2 SETS

FW PUMPS: 30L/MIN X 24M X 0.4KW X 1 SET, 21L/MIN X 12M X 0.2KW X 1 SET

BALLAST PUMP: 1600 CBM/H X 2 UNITS, 900CBM/H X 2 SETS

COMPRESSOR: 310L/MIN X 7.0KG/CM2 X 2.2KW, 300L/MIN X 7.0KG/CM2 X 2.2KW

** THE DOCK WAS ASSEMBLED BY TWO SMALL DOCKS ON 2008

LOCATION: MOKPO, KOREA

DELIVERY: WITHIN 1 ~ 2 MONTHS AFTER SIGNING CONTRACT

PRICE: INVITE BEST OFFER, AS BROKERS, TRY TO FIX AROUND USD3MILL LEVEL.

= ALL DETAILS ARE GIVEN IN GOOD FAITH BUT W.O.G =

brianlim

Floating Dock 9000 TLC-1986

Commercial ships

We can develop for sale of the following Floating Dock 9.000 TLC

Ref. No. : FD-9000-86 (TBN),

FLOATING DOCK

TYPE: PONTOON TYPE

BUILT: 1986 & 1987 (TWO DOCKS WERE ASSEMBLED TO ONE ON 2008)

DWT: 13,000 T

LIFTING CAPACITY TONNAGE: 9,000 TLC

LOA: 123 M (OVERALL), 105 M (DESIGN)

BREADTH: 34 M (OUTER), 27 M (INNER)

DEPTH: 21.3M, 17.4M (INNER)

HEIGHT OF B/TANK: 3.9M

CRANE: 12 TON X 35M X 2 SETS, 10 TON X 30 M X 2 SETS

MAIN GENERATOR: 150KVA X 2 SET

AUX. GENERATOR: 125KVA X 2 SET

PUMPS: 1,600M2/HR X 45KW X 2 SETS, 900M2/HR X 37KW X 2 SETS,

            95M2/HR X 11KW X 2 SETS, 30M2/HR X 7.5KW X 1 SET

WINCH: 15TON X 10M/MIN X 4 SETS, 7.5TON X 12M/MIN X 2 SETS

FW PUMPS: 30L/MIN X 24M X 0.4KW X 1 SET, 21L/MIN X 12M X 0.2KW X 1 SET

COMPRESSOR: 310L/MIN X 7.0KG/CM2 X 2.2KW, 300L/MIN X 7.0KG/CM2 X 2.2KW

** THE DOCK WAS ASSEMBLED BY TWO SMALL DOCKS

LOCATION: MOKPO, KOREA

DELIVERY: WITHIN 1 ~ 2 MONTHS AFTER SIGNING CONTRACT

PRICE: INVITE BEST OFFER, AS BROKERS, CAN GUIDE IT UPON REQUEST.

= All details are given in good faith but w.o.g =

brilim

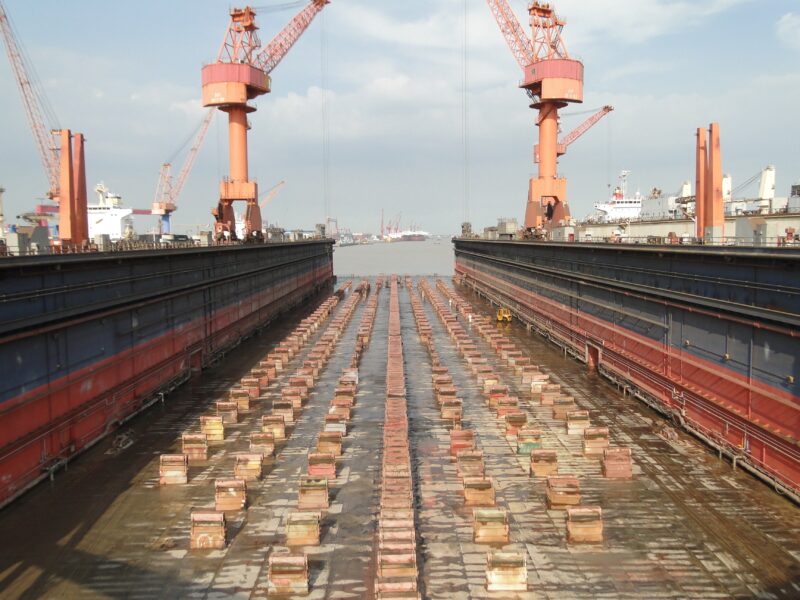

FLOATING DOCK -LIFTING CAPACITY 35,500 T-2010 China

Commercial ships

FLOATING DOCK- LIFTING CAPACITY: 35,500 TFOR SALE

FLAG: CHINA
CLASS: CCS

BUILT: 2010, CHINA

LOA/LBP(FLOATING BODIES): 285M / 265M

BREADTH: 61/60M

BREADTH BETWEEN WALLS: 51.0M

BREADTH INNER WALL (NET): 48.5M

WIDTH OF DOCK WALL: 5.0/4.5M

HEIGHT BETWEEN WALL CEILING TO CL: 21.0M

HEIGHT BETWEEN SAFE DECK TO CL: 16.90M

DRAFT: 4.8M

MAXIMUM IMMERSE: 17.0M

MAIN POWER SUPPLY: SHORE CONNECTION 10 KV / 380 V

EMERGENCY POWER SUPPLY: ONE GEN. SET

LIFTING CAPACITY: 35,500 T

CRANE: 30 TON X 2 SETS, EACH 40 METER

BALLAST TANK: 24 TANKS

PUMP ROOM: 4 ROOMS

BALLAST PUMP: 12 UNITS

** LOADABLE SHIP: 109,600 DWT CARGO SHIP OR 5500 TEU CONTAINER SHIP

** SHE WILL BE SOLD VIA PUBLIC BIDDING AND THE OWNERS WILL APPOINT A TRADING

 HOUSE FOR EXPORT TO OVERSEA.
** FD IS KEEP IN POSITION AGAINST CURRENTS AND WINDS BY MEANS OF 8 PCS ANCHOR

CHAINS.

LOCATION: CHINA

DELIVERY: WITHIN 1 MONTH AFTER SIGNING CONTRACT

PRICE: INVITE BEST OFFER, AS BROKERS, TRY TO TEST AROUND USD33.0MILL LEVEL.


= All details are given in good faith but w.o.g =

brilim

FLOATING DOCK 5000 t (NEWBUILDING/RESALE)

Commercial ships,

FLOATING DOCK 5000 t (NEWBUILDING/RESALE)

====================================

FLAG: KOREA

CLASSIFICATION: NIL

BUILT: DEC., 2019, MIRAE SHIPYARD CO LTD., KOREA

LOA/LBP: ABT. 120.00 M / 110.00 M

BREADTH(OUT/IN): 34.00 M / 28.00 M

DEPTH OF PONTOON DECK: 3.50 M

DEPTH OF TOP DECK: 13.50 M

DEPTH OF SAFETY DECK: 10.00 M

MAX SINKING DRAFT: 9.50 M

D.L.W.L: 2.90 M

LIFTING CAPACITY: 5,000 T

CRANE: TOWER CRANE X 1 SET

G/E: CUMMINS 650 HP X 1,800 RPM X 2 SETS

OTHER TANK: WB 14,850, FO 60 CBM

WINDLASS: 16 T X 9 M/MIN X 2 SETS

MOORING WINCH: 20 T X 10 M/MIN X 4 SETS

ANCHOR: STOCKLESS X 2 SETS

CARGO PUMP: BALLAST/GS FIRE/F.O TRANSFER/WASTE OIL/BILGE

OTHER EQUIPMENTS: COMMON BATT. TELEPHONE/P.A/LOADING COMPUTER/VALVE REMOTE CONTROL SYSTEM/ECHO SOUNDER/CCTV.

LOCATION: GOSUNG, KOREA

DELIVERY: WITHIN 1-2 MONTHS AFTER SIGNING CONTRACT

= All details are given in good faith but w.o.g =

lim

FLOATING DOCK-2010 China

Commercial ships,

We can develop for sale of the below Floating Dock

Ref. No. : FD-35500-10 (TBN),

FLOATING DOCK

FLAG: CHINA

CLASS: CCS

BUILT: 2010, CHINA

LOA: 285M

LBP (FLOATING BODIES): 265M

BREADTH: 61/60M

BREADTH BETWEEN WALLS: 51.0M

BREADTH INNER WALL (NET): 48.5M

WIDTH OF DOCK WALL: 5.0/4.5M

HEIGHT BETWEEN WALL CEILING TO CL: 21.0M

HEIGHT BETWEEN SAFE DECK TO CL: 16.90M

DRAFT: 4.8M

MAXIMUM IMMERSE: 17.0M

MAIN POWER SUPPLY: SHORE CONNECTION 10 KV / 380 V

EMERGENCY POWER SUPPLY: ONE GEN. SET

LIFTING CAPACITY: 35,500 T

CRANE: 30 TON X 2 SETS, 40 METERS

BALLAST TANK: 24 TANKS

PUMP ROOM: 4 ROOMS

BALLAST PUMP: 12 UNITS

** LOADABLE CAPACITY: 109,600 DWT BULK CARRIER OR 5500 TEU CONTAINER SHIP

LOCATION: CHINA

DELIVERY: WITHIN 1~2 MONTHS AFTER SIGNING CONTRACT

PRICE: INVITE BEST OFFER, AS BROKERS, CAN GUIDE IT CLOSELY UPON REQUEST.

== All details are given in faith, but w.o.g. ==
